Ford Stabiliser Solid State With Bracket 5v Spring Clips - Escort - FREE P&P

$22.78 , ,

Seller: plugpal-shop (163) 100.0%, Object Location: Brighton, GB, Shipment To: United Kingdom, Object Number: 398075972409

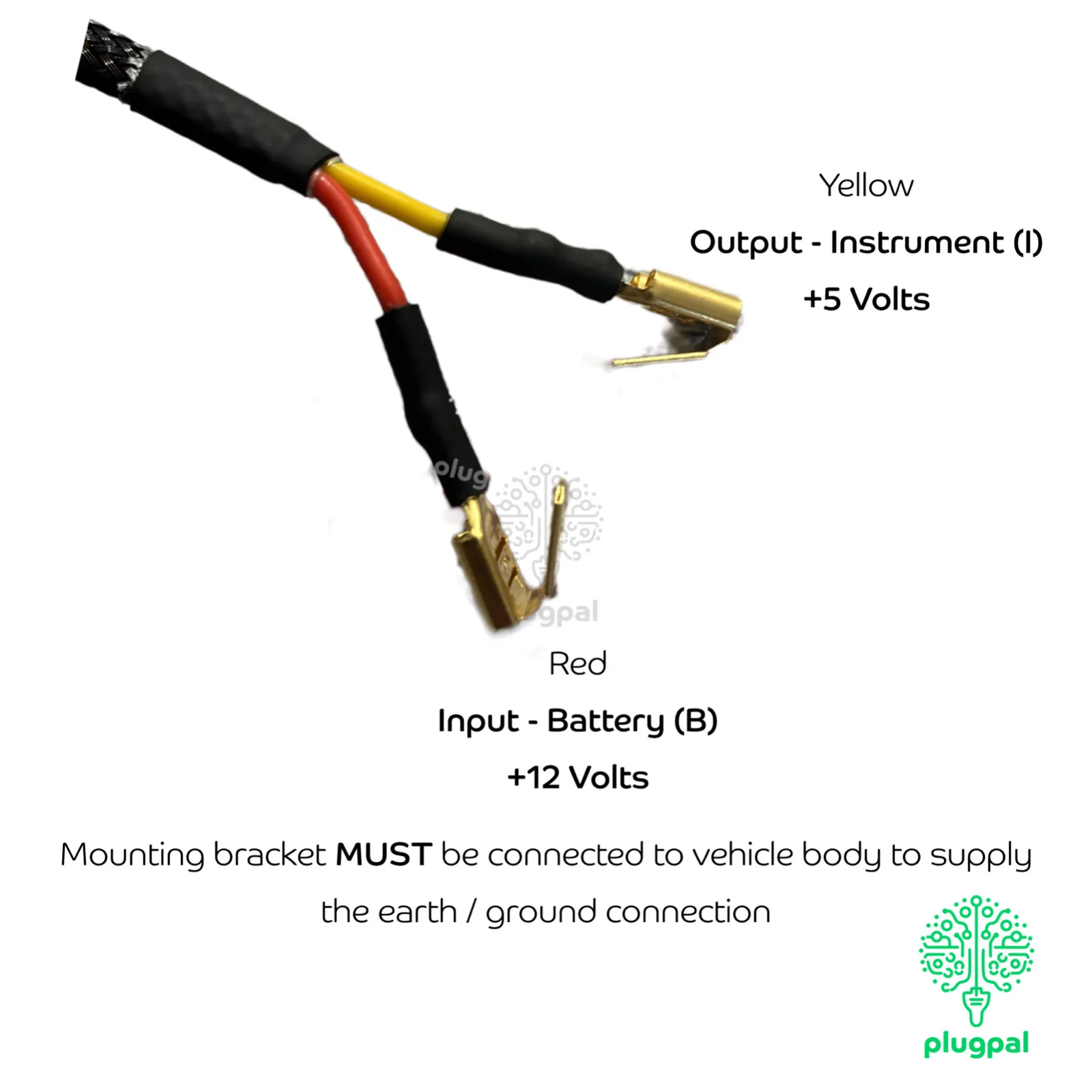

Ford Stabiliser Solid State With Bracket 5v Spring Clips - Escort - FREE P&P MK 2 Escort. Stable 5V Output for Accurate Classic Gauges. Integrated Mounting Bracket & Simple Installation. Ground is achieved through themounting bracket. Provides the required ground connection. Output Current Range: 5mA – 1A. Upgrade your classic Ford’s original mechanical voltage stabiliser with the plugpal Ford 5V Solid State Voltage Stabiliser with Mounting Bracket and Spring Clips, designed specifically for Ford negative earth systems. This modern electronic replacement provides reliable, stable voltage for classic Fords.Ideal for vehicles including:MK 2 EscortMK2 and MK2 CapriMK1 Granada…and many other classic Ford and period vehicles requiring a regulated 5V gauge supply with sprung clips into the gauge cluster.This stabiliser is suitable as a replacement for the following part numbers:71BB10804AA608020780BB10804AA601551974EB10804AA1579680_ALT608020701565006H75AB10804AA1565006015017470 Stable 5V Output for Accurate Classic GaugesUnlike ageing mechanical stabilisers that fluctuate with temperature and vibration, this solid state unit uses modern semi-conductor components to provide:Stable, constant 5V DC outputImproved fuel and temperature gauge accuracyConsistent performance regardless of engine revs or electrical loadGreater long-term reliability than original contact breaker unitsMaintain factory-style wiring while significantly improving gauge stability. Integrated Mounting Bracket & Simple InstallationThis version features a metal mounting bracket that:Secures directly to the vehicle bodyProvides the required ground connectionMust be bolted to chassis to operate correctlyProduct configuration:Two-wire design:Red wire – +12V inputYellow wire – Regulated +5V outputGround is achieved through the mounting bracketMetal enclosure acts as an integrated heatsinkAdequate wiring length for flexible positioning, approx 100mmSupplied with:6.3mm sprung terminal on +12V input6.3mm sprung terminal on +5V outputAlternative terminal options may be available upon request. Technical SpecificationsOutput Voltage: 5V DC (regulated, +- 0.5V)Vehicle Compatibility: Negative earth systems onlyOutput Current Range: 5mA – 1AComponents: Constructed with a LM2940T-5 voltage regulator and the manufacturer recommended capacitors on a custom circuit boardRecommended Load: Up to two gauges (fuel and temperature)Construction: Vented metal casing acting as heatsink with regulator mounted on thermal pasteConnections: Professionally crimped (not soldered) to prevent vibration-related stress fracturesProtection: Adhesive-lined heat shrink for improved moisture resistanceEngineered specifically for high-vibration automotive environments. Important InformationOutputs 5V only.Must be securely mounted to the vehicle body to function correctly.Suitable for negative earth vehicles only.If being installed not using the original loom stabiliser connections, a fused 12v supply is advised. Reliable 5V Voltage Regulation for Classic CarsWhether you’re restoring a vintage Ford or replacing a faulty original stabiliser, the plugpal 5V Solid State Voltage Stabiliser with Bracket provides dependable, modern performance while retaining classic compatibility.Ensure stable and accurate dashboard gauge readings in your classic car with a purpose-built solid state solution. Installation instructions are attached to the Product Documents section below this description in the auction listing. Please note, this item is specifically designed for the supply of a measured voltage to dashboard gauges. Using it for applications other than this is not recommended or advised.Delivery is free, tracked and insured within the UK using eBay Simple Delivery. Shipping outside of the UK is via eBay's Global Shipping Programme and the price is set by eBay.

Condition: New,Brand: plugpal, Manufacturer Part Number: 71BB10804AA, 6080207, 80BB10804AA, 6015519, 74EB10804AA, 1579680_ALT, 60802070, 1565006, H75AB10804AA, 15650060, 15017470, Material: Metal, Country of Origin: United Kingdom, Reference OE/OEM Number: 71BB10804AA, 6080207, 80BB10804AA, 6015519, 74EB10804AA, 1579680_ALT, 60802070, 1565006, H75AB10804AA, 15650060, 15017470

Ford Stabiliser Solid State With Bracket 5v Spring Clips - Escort - FREE P&P
