Laser Grade Machine Control System CANAMEK with Remote

$4100.00 , ,

Seller: canameksystemsinc2014 (89) 100.0%, Object Location: Newmarket, Ontario, CA, Shipment To: Worldwide, Object Number: 174658051433

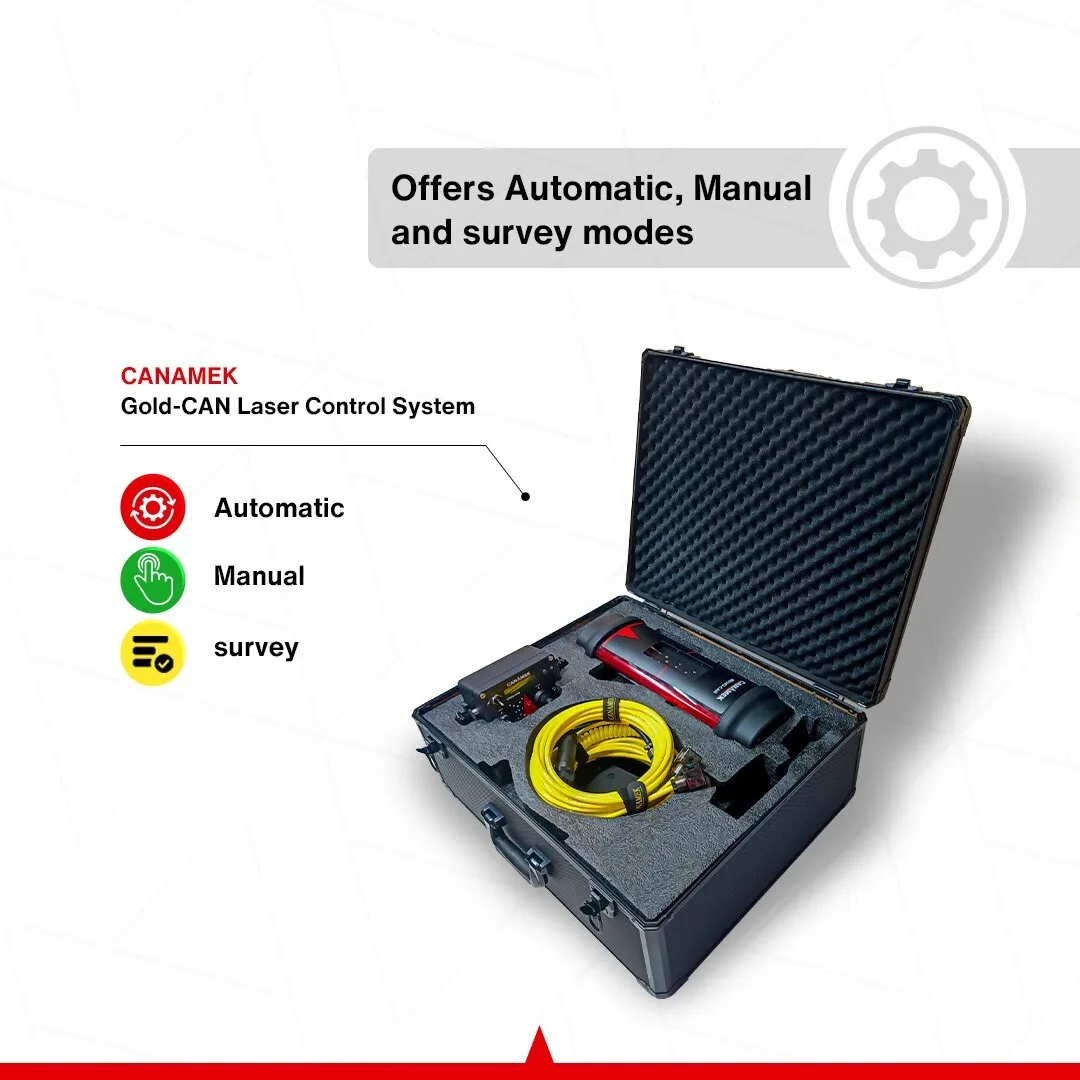

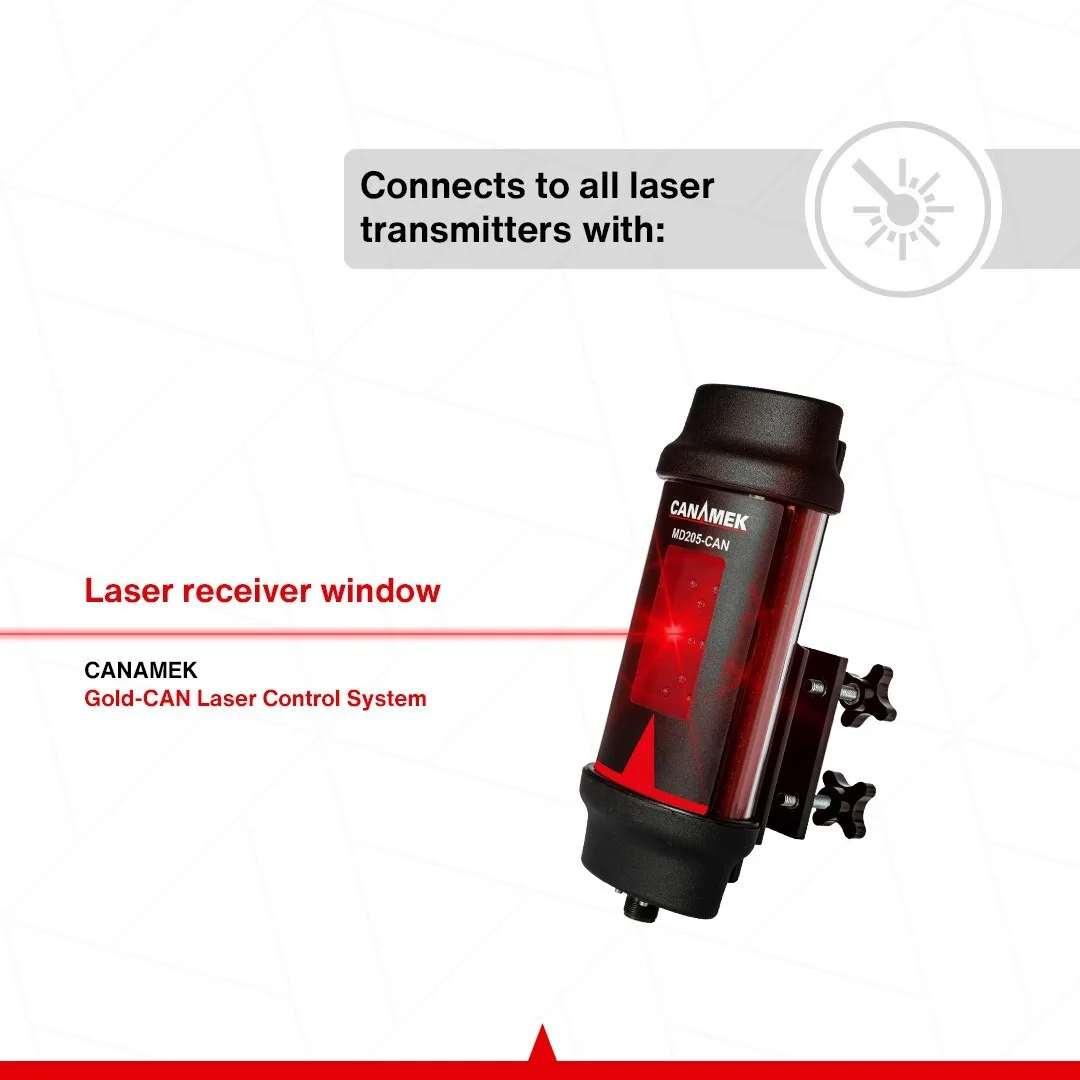

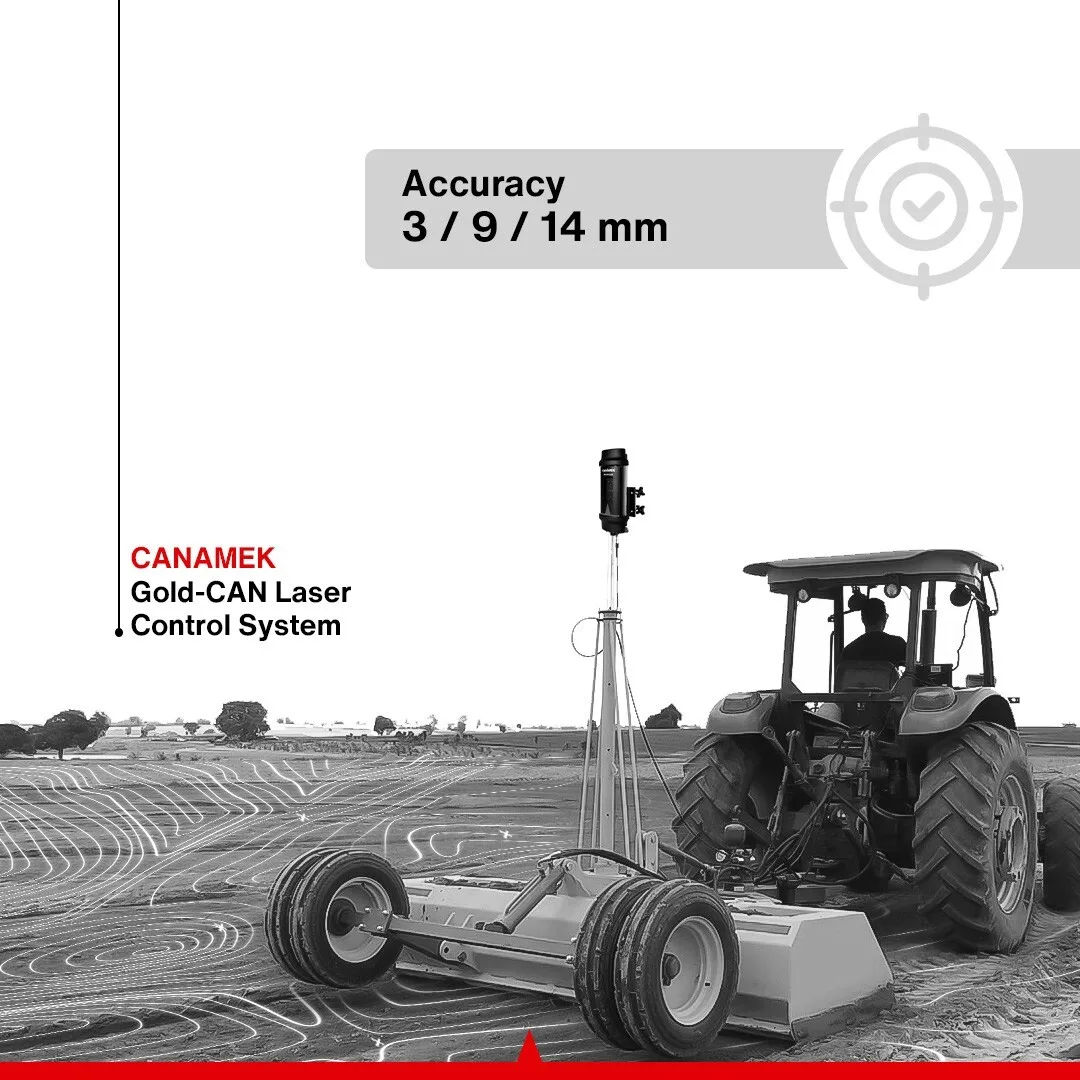

Laser Grade Machine Control System CANAMEK With Remote Connecting to all Laser Transmitters with Red Laser Beam. Capability of Remote Switch Connectivity. MD205-CAN Laser Receiver. Remote Switch RS100. Receiver Communicates and is Powered via CAN bus. Short circuit protection. CANAMEK-Gold-CAN Laser Control System-Connects to Almost all Machine Types-Offers Automatic, Manual and survey modes-Connecting to all Laser Transmitters with Red Laser Beam-3 / 9 / 14 MM Accuracies -LED Display that can be Easily Read, even in Strong Sunlight or in the Night Time-Operation Temperature: - 20 to 60+ °-Valve Types Supported; On/Off Valves, Actuators(Optional)-Valve Flow Setting-10 to 30 V input voltage-Made in CANADA-2 Year Warranty-7 Days a Week After-Sales ServicesPackage Components:CP210-CAN Control BoxMD205-CAN Laser ReceiverRemote Switch RS100Power CableBlade CableData CableAluminum Carry Case Features:Control Box CP210-CAN: Selectable AccuraciesWater-Resistant: IP66Capability of Remote Switch ConnectivityDisplaying Error Message When No Connection Between Receiver & Control BoxShort circuit protectionVoltage Range: 12 to 24 VBlade Up and Down Speed Control in 80 Increments through MenuLaser Receiver MD205-CAN:Alloy Aluminum BodyWater-Resistant: IP68Capture Range: 360°Measurement Window: 190 mmWeight: 2.850 KgReceiver Communicates and is Powered via CAN busVoltage Range: 12 to 24 VMechanical Clamp Mount for Secure Attachment on MachinesReal-Time Laser Bounce FiltrationFlashing LED Indicators: Red: Receiver is above grade Green; Receiver is on grade Yellow; Receiver is below gradeRemote Switch RS100: Aluminum Body Heavy Duty water and dust proof switches Coiled Cable/ high mechanical resistant Easy to operate and durableCables and Connectors:Water & Dust Proof ConnectorsCircular Mill ConnectorsAppropriate for High Mechanical StressAppropriate for Low temperaturesOil ResistantPower Cable Length: 13.12 ftBlade Cable Length: 24.77 ftReceiver to Control Box Connection Cable Length: 36 - 46 ft

Condition: New,
