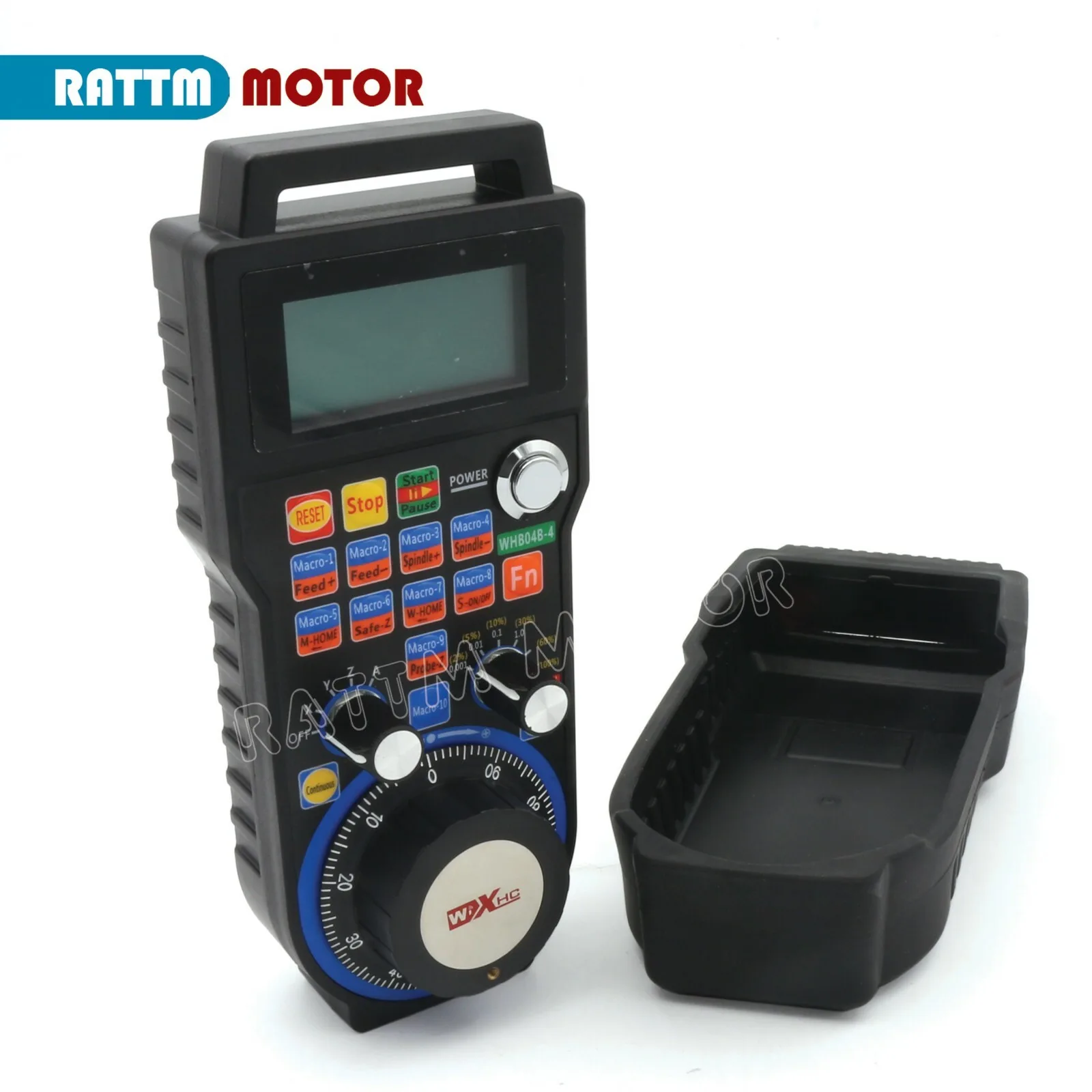

Alternative Picture〖US〗4 Axis XHC MPG Pendant MACH3 Wireless Handwheel Remote USB Receiver WHB04B-4

8 of 8 More

See Details on Ebay ^{Available On}

#Ad

〖US〗4 Axis XHC MPG Pendant MACH3 Wireless Handwheel Remote USB Receiver WHB04B-4

$119.99 Buy Now , , 30 Days Return,

Seller: powace1515 (4,132) 99.8%, Object Location: TX, US, Shipment To: United States, Object Number: 114878932482

〖US〗4 Axis XHC MPG Pendant MACH3 Wireless Handwheel Remote USB Receiver WHB04B-4 Model WHB04B WHB04B-4 (we will send this type). WHB04B has 2 series：. 1x 4 Axis WHB04B-4 wireless electronic handwheel. 1x Handwheel rocker. For Windows: All Mach3 CNC. application on mach3 cnc system in windows platform. 〖US〗4 Axis XHC MPG Pendant MACH3 Wireless Handwheel Remote USB Receiver WHB04B-4Package include: 1x 4 Axis WHB04B-4 wireless electronic handwheel1x Handwheel rocker1x USB wireless receiver 1x User manual 2x Screws1x Bracket1x WHB04B-4 driver CD Description: 1) Adopt frequency hopping transmission, strong anti-interference ability. Using 433MHZ, ISM wireless FR transmission technology, transmit power 10DB, receive sensitivity -98DB. 2) With 64 frequency hopping channels, each channel interval 1MHZ. 3) Intelligent wireless technology, automatic frequency hopping, automatic power saving, automatic to learn ID code. 4) Frequency hopping transmission technology, the same room, can support 64 sets of equipment at the same time, do not affect each other. 5) 100PPR manual pulse generator support 10 macro function button. 6) LCD display:Display Y Z A X axis of the mechanical coordinates and workpiece coordinates. Show the spindle speed, the value of the feed rate. Dot matrix LCD with backlight. Axis selection, power band switch control. 7) Axis select band switch to achieve the electronic hand wheel off and the corresponding Y Z A X each axis function of the choice of control. The choice of the step distance value is realized by selecting the switching value band, which is simple and convenient. 8) The series of remote control, providing DLL library files for customers to carry out the 2 development, suitable for the customer's own a variety of numerical control system. The series of remote control, based on the WINDOWS system. Features: - Adopt frequency hopping transmission, strong anti-interference ability - Using 433MHZ, ISM wireless FR transmission technology, transmit power 10DB, receive sensitivity -98DB. - With 64 frequency hopping channels, each channel interval 1MHZ. - Intelligent wireless technology, automatic frequency hopping, automatic power saving, automatic to learn ID code. - Frequency hopping transmission technology, the same room, can support 64 sets of equipment at the same time, do not affect each other - LCD display - Display Y Z A X axis of the mechanical coordinates and workpiece coordinates. - Show the spindle speed, the value of the feed rate. - Dot matrix LCD with backlight - Axis selection, power band switch control - Axis select band switch to achieve the electronic hand wheel off and the corresponding Y Z A X each axis function of the choice of control - The choice of the step distance value is realized by selecting the switching value band, which is simple and convenient. Application: For Windows: All Mach3 CNC Explanation: 1. Key success indication: when you press the button, the receives the key value, the indicator flasher about, indicating successful key operation. 2. Speed Indicator: when the band switch to select 1X,10X,100X,1000X,the LCD display value:0.001,0.01,0.1,MPG. 3. Axis selected location: Axis selection switch position, LCD display axis selected. X:X workpiece coordinate axis,1X:X axis mechanical coordinate. ModelWHB04BWHB04B-4 (we will send this type)PictureRadio frequencyISM,433MHZISM,433MHZWireless transmission distance40 meter40 meterPower2pcs Alkaline batteries2pcs Alkaline batteriesPulse generator100PDR100PDRAccept sensitivitynegative 98DBnegative 98DBMax. axis44 (WHB04B-4)MaterialABS and PC materialABS and PC materialScreen LCD DisplayLCD DisplayOnly displayed the current axis valueCan display 3 axis value meanwhileMacro code buttonNot support SupportStep/Continuous mode switchNot support SupportCompatibilityOnly support some USB card, th following cards can not be usedAll card can be usedAll parallel cardsAll parallel cardsSome ethernet cardAll ethernet cardSome USB cardAll USB card- Description : 1. Applications WHB04B has 2 series： 1. WHB04B-4：support 4 axis with x,y,z,a 2. WHB04B-6：support 6 axis with x,y,z,a,b,c application on mach3 cnc system in windows platform. 2. Product Overview 3. Application circut 4. Key feature1 .Auto Frequency Hopping When Noise. Frequency band:433Mhz,ISM ,the output power up to10DB，High receiver sensitivity-98DB.32 hopping channels，the channel frequency gap is 1Mhz.the transmission is encrypted， auto build communication network and pair. auto hopping when noise.32 sets of wireless MPG could be used at the same time in one room. 2. LCD displayDisplay the X Y Z A B C axis work and machine coordinate data. Display the spindle and feed speed.The lcd display data with background light.3. Axis/Step band switch To choose X/Y/Z/A/B/C axis or close all axis by axis switch,to choose jog step by step switch.4. support 10 macro function button 5. ParameterDescriptionFrequency bandsISM，433MHZSupply voltage2 AA batteriesWireless transmission distance40 meterMPG Encoder100PPRFunction Key16 Keys(support 10 macro function button)Output power10DBReceiver sensitivity-98DBMaximum axis4 axis (WHB04B-4)LCDDot LCD with background lightMaterialThe material is ABS and PC with anti-impact and heat-resistant. With protected Silicon coat 6. LCD Display overview 7. Funciton key descripiton PaymentWe accept payment through PAYPAL only.Shipping 1.Items will be shipped within 1-2 days upon the receipt of payment.2.Please check out your address carefully when processing order.We are not responsible for wrong or undeliverable address.We will ship item to your PAYPAL address. If other address, please advise us by eBay or E-mail.3.The estimated delivery time is 7~15 workings days to Asian, USA, AU, UK and most western European countries;15~30 workings days to most other countries.Return&Refund 1.Any reason required for all refund.Item must be in it's original condition and no physical damage,buyer responsible for all shipping cost.2.When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos,we will help you to solve any problems.Contact 1.If you are not satisfied, please contact us to resolve any issues. Please do NOT leave negative feedback without asking for help. We work hard to make sure EVERY CUSTOMER 100% satisfaction.2.For any inquiries,issues or assistanceplease contact us via eBay or leave your mail address.3.All emails will be answered within 1-2 working days.If you do not receive our reply,please kindly re-send your email and we will reply to you as soon as possible.

Condition: New,Country of Origin: China, Model: WHB04B-4, Modified Item: No, Custom Bundle: No, Material: ABS and PC material, Axis: 4 Axis, Pulse: 100PDR, Remote: 40M, Wire: Wireless, Application system: Mach3, Supply Current: ≤80mA, Name: 4 Axis MACH3 Wireless Handwheel, Brand: RATTM MOTOR
